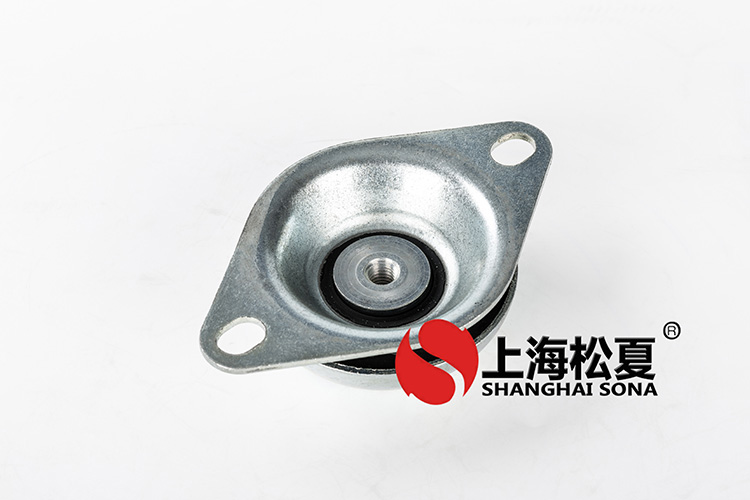

JNH783010M橡膠減震器 空壓機橡膠減震器

JNH783010M rubber shock absorber rubber shock absorber of air compressor is the best

上海松夏減震器有限公司官方網站為您介紹：JNH783010M橡膠減震器信息，松夏集團為空壓機配套JNH型橡膠減震器產品，效果.好，內部橡膠與鐵件完全膠合，可提*.好減震效果，此外并附帶有安全鎖零件，以保障安全。
Shanghai Songxia absorber group limited official website for your introduction: JA783010 rubber shock absorber, Songxia group for compressor of JA type rubber shock absorber products, the best internal rubber and iron piece completely glued, can provide the best damping effect, and also comes with safety lock parts, to ensure safety.



JNH型橡膠減振器在軸向壓力及側向壓力可達到高度的減震效果，尤其用在發電機、引擎和系統方面，減震效果非常良好，運用范圍大約在25Hz (1.500 rpm )。

內部橡膠與鐵件完全膠合，可提*.好減震效果，此外并附帶有安全鎖零件，以保障安全。

The JNH type rubber shock absorber can achieve high damping effect on axial pressure and lateral pressure, especially for generators, engines and systems. The damping effect is very good, and the application range is about 25Hz (1.500 RPM).

The internal rubber and iron piece completely glued, can provide the best damping effect, and also comes with safety lock parts, to ensure safety.

適用設備：

水泵、柴油發電機、空壓機及電機等諸多設備。  荷載范圍：30-700Kg。

Applicable equipment:

Many equipment such as water pump, diesel generator, air compressor and motor and so on. Load range: 30-700Kg.

JNH型阻尼橡膠減振器是由上下殼體和橡膠減振層構成，適用于各類1500轉/分以上船用、陸用、航空用機械設備的振動、沖擊隔離。其在額定荷載下固有頻率為10Hz。結構簡單，安裝更新方便，使用安全可靠。安裝方式多種多樣，適用于平置、側置及側掛等多種安裝形式。橫向剛度高于縱向剛度，平置時橫向穩定性更好些。

The JNH damping rubber shock absorber is made up of upper and lower shells and rubber damping layer. It is suitable for vibration and shock isolation of all kinds of machinery with 1500 revolutions and above. The natural frequency is 10Hz under the rated load. The structure is simple, the installation and update is convenient, and the use is safe and reliable. Various types of installation are suitable for a variety of installation forms, such as flat, side and side hanging. The lateral stiffness is higher than the longitudinal stiffness, and the lateral stability is better when it is flat.

JNH型橡膠減震器說明:

1、內部橡膠與鐵件完全膠合，此外并附帶有安全鎖零件，以保障安全。

2、減振器在軸向壓力及側向壓力可達到高度的減震效果。

3、適用于各類發電機、水泵、風機、空調機組等。

JNH rubber shock absorber shows that:

1, the internal rubber and iron completely glued together with a safety lock, in addition to the safety of parts.

2, the shock absorber can achieve a high shock absorption effect in the axial and lateral pressure.

3. It is suitable for all kinds of generator, water pump, fan, air conditioning unit and so on.

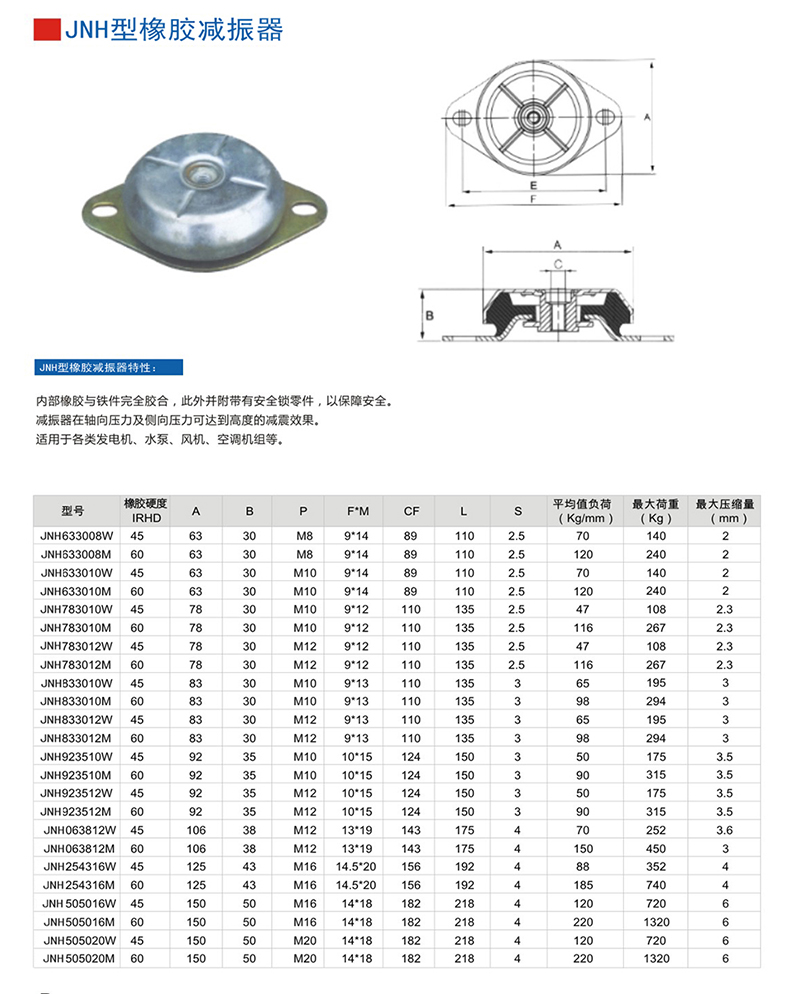

JNH型橡膠減震器說明書：

JNH783010M橡膠減震器，空壓機橡膠減震器效果.好信息來源于上海松夏減震器有限公司官方網站，如需了解更多減震器產品請點擊： http://www.qiulaicha.com/
